Oil Seal Inspection with Machine Vision in the Automotive Industry

Machine Vision for Oil Seal Inspection in the Automotive Industry

In modern vehicles, seals play a critical role in the functionality and safety of key systems such as brake systems, steering columns, and pump assemblies. These components — often in the form of radial shaft seals, O-rings, or plastic rings — must withstand continuous exposure to pressure, friction, temperature changes, and vibrations. Even the slightest defect can lead to leakage, performance loss, or in worst cases, complete system failure.

To prevent such risks, automotive manufacturers and suppliers are increasingly turning to automated quality inspection using machine vision. While quality control once relied on random sampling, modern vision systems now enable full inline inspection of every single seal — fast, accurate, and fully traceable.

Inspecting Oil Seals: Critical Surfaces and Defect Detection

When inspecting oil seals, dimensional accuracy alone is not enough. In safety-critical components like brake boosters or power steering systems, the surface condition of the sealing area is essential. Functional zones — such as the sealing lip and surrounding region — must be free of cracks, holes, air pockets, vulcanization issues, or trapped foreign material. These common defect types are all potential sources of leakage.

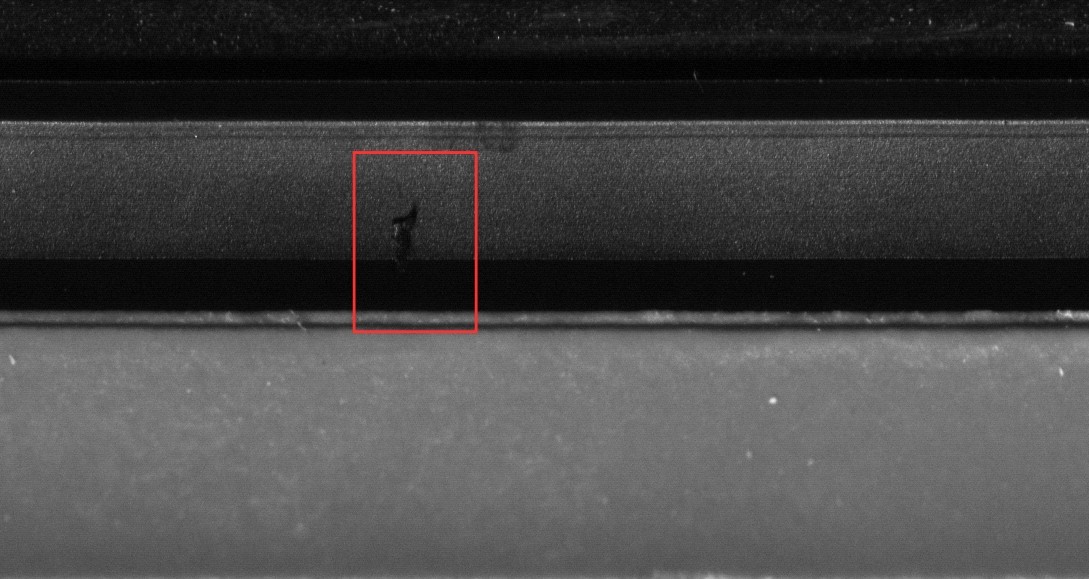

For this purpose, line scan cameras are often used. As the seal rotates during inspection, the system captures a continuous cylindrical image of both inner and outer surfaces. This allows for detailed, high-resolution analysis of the sealing edge and adjacent areas to detect physical damage or irregularities.

Because rubber seals are typically very dark and light-absorbing, the correct lighting setup is crucial to provide sufficient contrast and visibility of fine surface defects.

In many inspection systems, a distinction is made between the functional sealing zone — directly next to the lip — and the rest of the seal surface. Stricter tolerances and acceptance criteria typically apply in this critical area.

Measuring Diameters and Verifying Assembly

In addition to surface inspection, dimensional measurement is key — especially in components like hydraulic pumps or driveshaft sealing units. Matrix cameras equipped with telecentric lenses and backlight illumination are used to measure the inner and outer diameters of the seal. This setup eliminates perspective distortion and ensures repeatable results, even when parts are slightly misaligned.

Vision systems are also deployed to verify correct assembly of compound seals. This includes checking the presence and correct placement of steel springs or plastic rings that form part of the complete sealing element. By combining multiple camera angles, the system can inspect the top, bottom, and sides of the part within a single inspection cycle.

Conclusion

In applications such as brake boosters, steering columns, and pump assemblies, flawless seals are essential. Machine vision enables fully automated inspection of form, dimensions, assembly integrity, and surface quality — contributing directly to the reliability, safety, and perceived quality of automotive products.
