Advantech ICAM-520-12W

Item No.: 007.0017

Advantech ICAM-520-12W, AI Smart Camera

Advantech ICAM-520 series is a highly integrated industrial AI Smart Camera equipped with programmable variable focus lens, LED illumination, SONY industrial grade image sensor, multiple core ARM processors and NVIDIA AI system on the module.

The ICAM-520 AI Smart camera reduces installation and maintenance effort significantly. Featuring CAMNavi SDK, HTML5 web based utility, NVIDIA Deepstream SDK, and Azure AVA support package, ICAM-520 series accelerates the development and deployment of cloud-to-edge vision AI applications. The CAMNavi SDK uses Python language by default and is better adapted to image acquisition and AI algorithm integration. Meanwhile the HTML 5 web based utility can be used to setup the cameras and network configuration to lower the installation effort. The preloaded, optimized Jetpack board support package and Azure Video Analyzer support package seamlessly connect to AI cloud services. The built in physical buttons of ICAM-520 allow the user to snapshot and customize functions. Advantech ICAM-520 series is an all-in-one, compact and rugged industrial AI camera, and is ideal for a variety of Edge AI Vision Applications.

Full technical specifications: Click here to download

2.564,00
(Price excluding VAT)
Features
Colour/Mono:
Colour
Sensor Type:
SONY MX296
Camera Type:
AI Smart Camera
Megapixel:
1.6 MP
Framerate:
60 FPS
Interfaces:
GigE
CPU:
6-core NVIDA Camel ARM
GPU:
NVIDIA Volta GPU, 384-core
IP:
IP54
Housing:
Yes
Brand:
Advantech

Technical information:

- Sensor : SONY MX296

- Sensor type: Color

- Sensor shutter : Global shutter

- Sensor size: 1/2.9"

- Resolution: 1.6MP

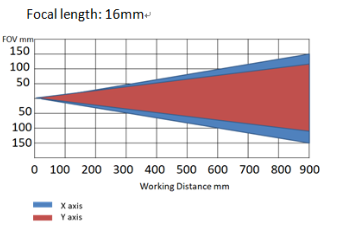

- Lens: 16mm varaible focal lenght

- FPS: 60

- CPU: 6-core NVIDA Camel ARM ® v8.2 64-bit

- GPU: 384-core NVIDIA Volta with 48 Tensor

- Peripheral I/O: 1x USB 3.0 Type C, 1x RS485

- Digital I/O: 3 IN / 2 OUT

- Display I/O: 1x HDMI 2.0

- LED illumination: 8x PWM white LED's

- Power requirements: 24VDC+ 10% Max: 17W, typical 15W

- Ethernet: 10/100/1000 Base-T

- Synchronization: Hardware trigger / software trigger / free-run

- IP: 54

- Operation temperature: 0 tot 45 °C

- Dimensions: 82mm (W) x 121mm (H) x 62mm (D)

Software support:

- OS: Ubuntu 18.04, Jetpack 4.6.2

- Software: Azure AVA (Azure Video Analyzer) support package

- SDK/Utiltiy: CAMNavi SDK, Web based camera utility, IP configure tool, NVIDIA DeepStream SDK & example
