DTCM230-26

Item No.: 238.0065

DTCM230-26

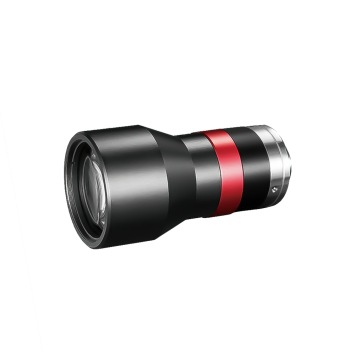

Coolens DTCM230-26 - C-Mount Bi-Telecentric Lens

• FOV ⌀ 26mm, Ultra Resolution Bi-Telecentric Lens

• Up to 5 MegaPixels, 3.45 μm Pixel Size Sensors

• 2/3" Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.438

617,00
(Price excluding VAT)
Features
Brand:
Coolens
FNO:
F 6.0
Sensor Type:
2/3 Inch
Mount:
C-mount
Megapixel:
5MP
Series:
Telecentric
FOV:
26 mm

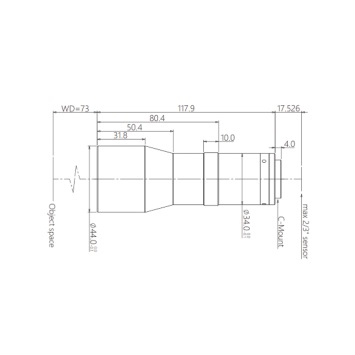

Specification

FOV: 26 mm ⌀

Max Sensor Size: 11.4 mm (2/3")

Typical Telecntricity: <0.1

MTF30: >130 lp/mm

I/O length: 208+/-1 mm

Dept of Field: +/- 2.3 (@F11)

Length: 117.9 mm

Magnification: (x) 0.438

Working Distance: 73 +/-1 mm

Aperture: F6.0

Typical Distortion: max <0.1%

C-mount
