RICOH FL-CC0820-5MX

Item No.: 214.0017

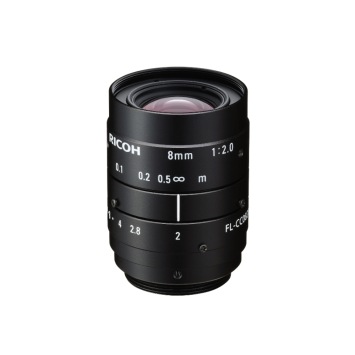

RICOH / OPTOWL FL-CC0820-5MX 8 mm Machine Vision Lens

C-mount lens with a fixed focal length of 8 mm, suitable for 2/3" sensors with a pixel size of 3.45 µm or larger. Originally part of the RICOH FL-CC-5MX series, now OPTOWL.

Compatible M30.5 optical filters

This lens has an M30.5 × 0.5 filter thread. Bandpass filters can suppress ambient light, while polarizing filters reduce reflections. Explore our M30.5 optical filters for available filter types and wavelengths.

Other focal lengths: See the OPTOWL 5MX lens series for other available models.

Technical specifications: Download datasheet

€349,00
(Price excluding VAT)
EAN
7435848225217
Brand
RICOH
Focal length
8mm
FNO
F 2.0
Sensor Type
2/3 Inch
Mount
C-mount
Megapixel
5MP
Series
FL-CC

Specification

Focal length: 8 mm

Sensor Size: 2/3"

Min Pixel Pitch: 3.45 μm

Maximum aperture: F2.0~F16

Minimum Object Distance: 100 mm

Horizontal angle of view: 58.5°

Filter diameter: M30.5

Lens diameter: 33.0 mm

Lens length: 43.0 mm

C-mount
