MATRIX 220 382-010

Item No.: 057.0080

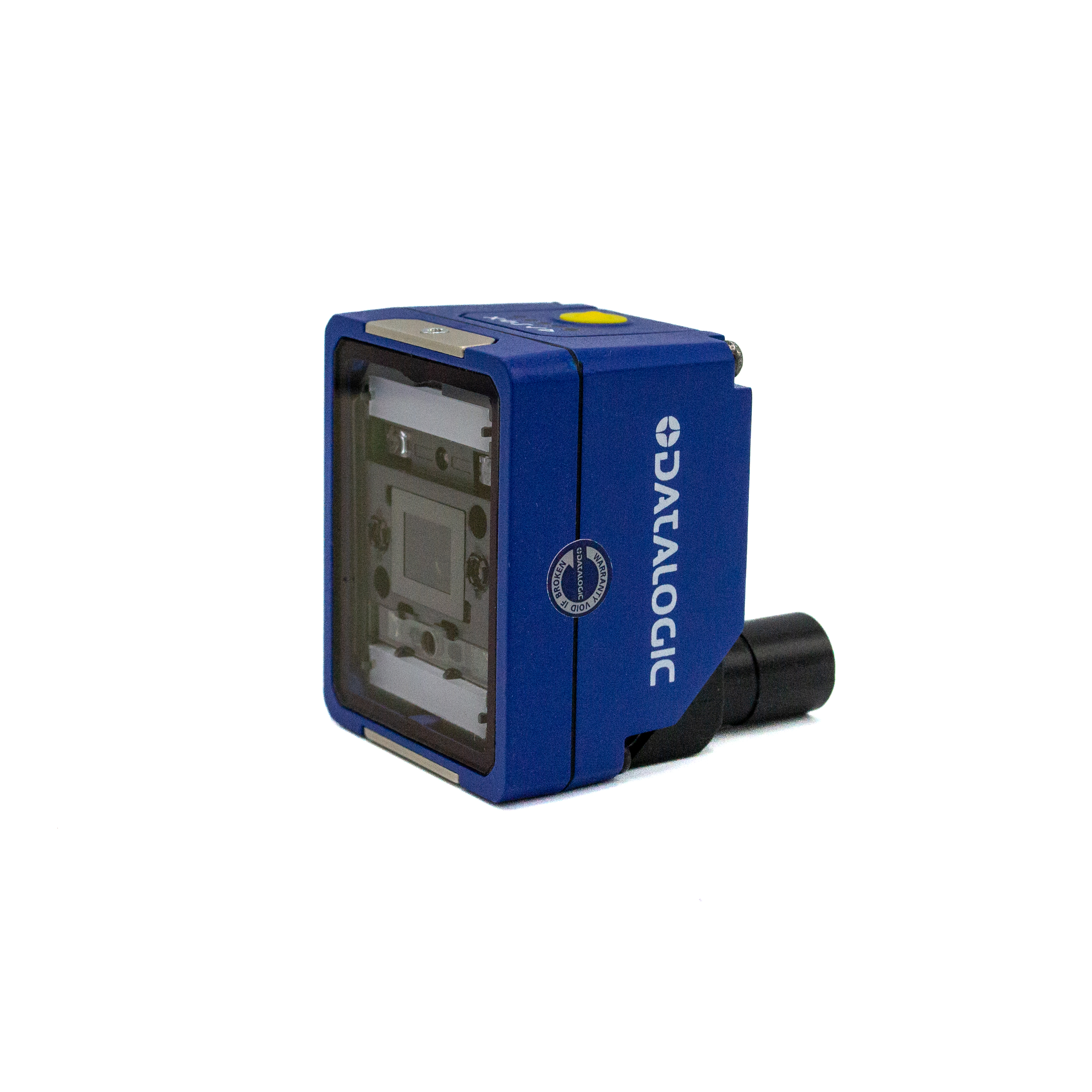

MATRIX 220 382-010

The Matrix 220 Imager is engineered to deliver exceptional performance, leveraging a 1.2 MP high-resolution sensor, an advanced image multicore processing platform, cutting-edge lighting solutions, and industrial-grade electronic focus technology. These features collectively position it as the premier choice for imaging in Electronics, Automotive, Packaging, and Document Handling applications.

Furthermore, its integrated flexible illumination system enhances its capability, making the Matrix 220 Imager perfectly suited for reading codes marked with DPM (Direct Part Marking).

Technical specifications: Click here to download

2.100,00
(Price excluding VAT)
Features
Resolution:
1280 x 960
Camera Type:
Fixed Industrial Scanner
Framerate:
45 Frames/s
Interfaces:
Ethernet
IP:
IP65
Housing:
Yes
Brand:
Datalogic

Technical information:

- Resolution: 1280 x 960

- MP: 1.2

- Lens: 1/3" CMOS

- FPS: 45 Frames/s

- Readable Symbologies: 1D Codes, 2D Codes

- Power requirements: 10 - 30 VDC except PoE models

- Communication: Ethernet 10/100 Mbit/s

  • TCP/IP, UDP, FTP
  • PROFINET IO
  • Ethernet IP
  • Modbus TCP
  • OPC UA

- IP: 65

- Operation temperature: 0 tot 50 °C

- Dimensions: 78 mm (W) x 47 mm (H) x 38 mm (D)
