DCM BKL0303A-630S

Item No.: 230.0423

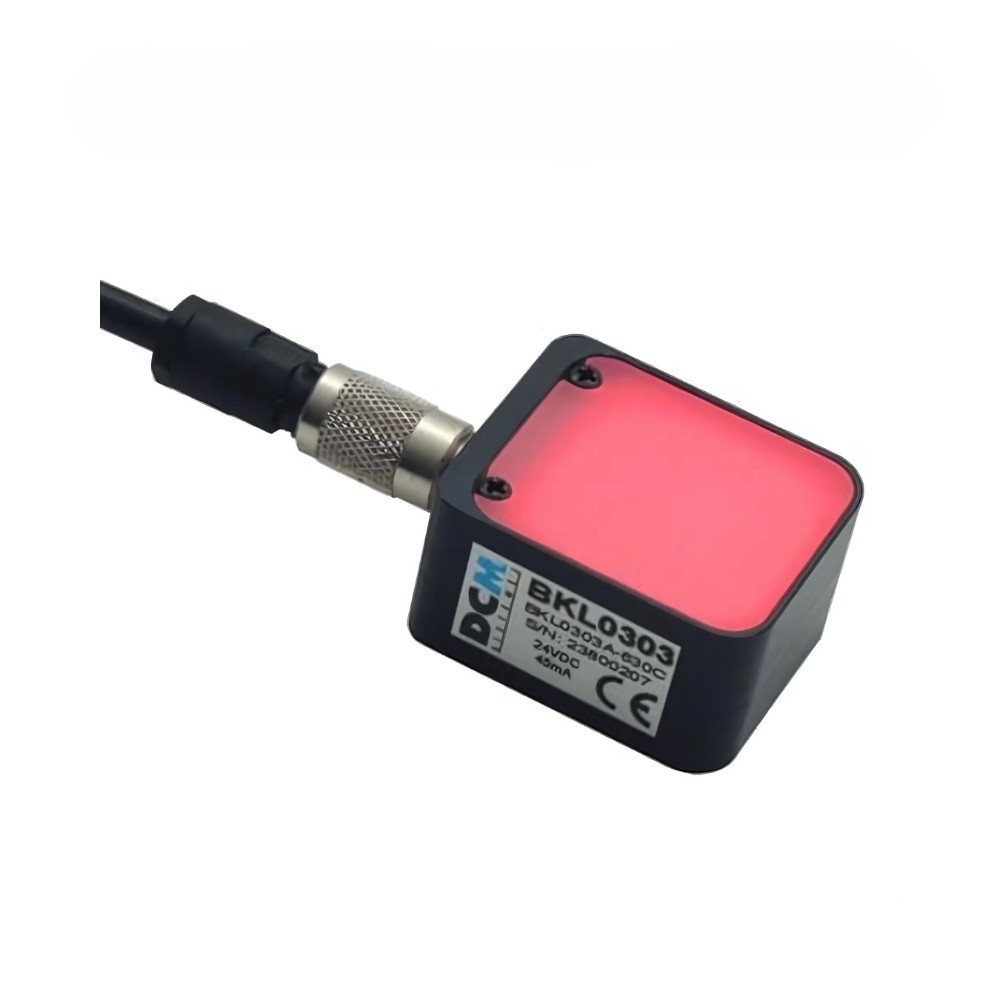

DCM BKL0303A-630S, Diffuse backlight illumination

DCM BKL0303A-630S - Diffuse backlight illumination

The BKL is a diffuse backlight illumination, designed for applications where strong light-dark contrast is essential to clearly visualize shapes, edges, and profiles. By evenly illuminating the object from behind, a sharp silhouette is created, ideal for machine vision applications such as contour detection, edge inspection, and profile measurement.

The aluminum housing of the illumination is designed for maximum heat dissipation.

Technical specifications: Click here to download

Made in Europe

180,00
(Price excluding VAT)
EAN
7435844447415
Type of illumination
Backlight
Shape
Square
Angle
0
Colour
Red
Voltage Input
24V
IP
40
Size
30x30
Brand
DCM Sistemes
Series
BKL

Specification

- Colour Red

- IP 40

- Size 30x30 mm

- Strobe Applications

- 2P Cable

Technical information

24V DC Input Power

Voltage/Watt

24V / 160mA/3.8W
