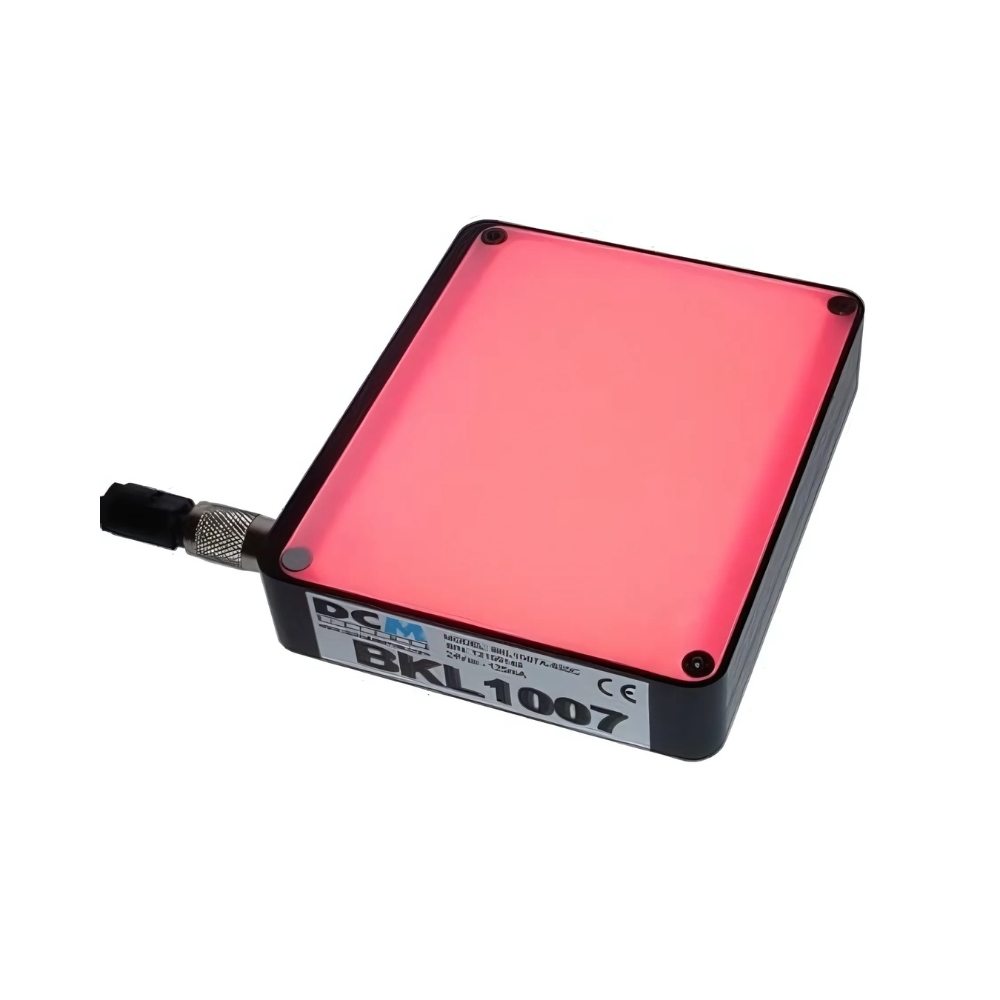

DCM BKL1007B-525C

Item No.: 230.0495

DCM BKL1007B-525C, Diffuse backlight illumination

DCM BKL1007B-525C - Diffuse backlight illumination

The BKL is a diffuse backlight illumination, designed for applications where strong light-dark contrast is essential to clearly visualize shapes, edges, and profiles. By evenly illuminating the object from behind, a sharp silhouette is created, ideal for machine vision applications such as contour detection, edge inspection, and profile measurement.

The aluminum housing of the illumination is designed for maximum heat dissipation.

Technical specifications: Click here to download

Made in Europe

696,30
(Price excluding VAT)
EAN
7435848451470
Type of illumination
Backlight
Shape
Square
Angle
0
Voltage Input
24V
Colour
Green
IP
40
Size
70x100
Brand
DCM Sistemes
Series
BKL

Specification

- Colour Green

- IP 40

- Size 70x100 mm

- Continuous Applications

- 2P Cable

Technical information

24V DC Input Power

Voltage/Watt

24V / 3.8W
