DTCM118-26

Item No.: 238.0045

DTCM118-26

Coolens DTCM118-26 - C-Mount Bi-Telecentric Lens

• FOV ⌀ 26mm, Ultra Resolution Bi-Telecentric Lens

• Up to 6 MegaPixels, 2.4 μm Pixel Size Sensors

• 1/1.8″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.346

581,00
(Price excluding VAT)
Features
Brand:
Coolens
FNO:
F 4.6
Sensor Type:
1/1.8 Inch
Mount:
C-mount
Megapixel:
6MP
Series:
Telecentric
FOV:
26 mm

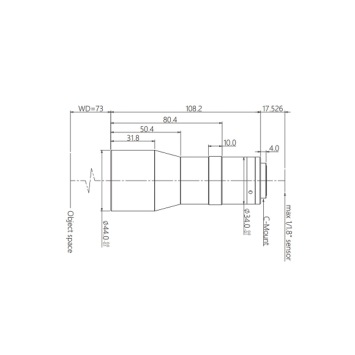

Specification

FOV: 26 mm ⌀

Max Sensor Size: 9.0 mm (1/1.8")

Typical Telecntricity: <0.1

MTF30: >170 lp/mm

I/O length: 199 +/-1 mm

Dept of Field: +/- 3.7 (@F11)

Length: 108.2 mm

Magnification: (x) 0.346

Working Distance: 73 +/-1 mm

Aperture: F4.6

Typical Distortion: max <0.1%

C-mount
