RICOH FL-BC5024-9M

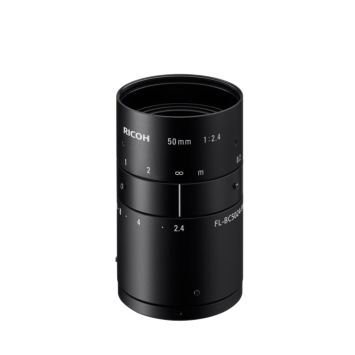

RICOH / OPTOWL FL-BC5024-9M – 50 mm 12 MP C-Mount Machine Vision Lens

The FL-BC5024-9M is a 50 mm C-mount lens for industrial machine vision cameras with sensors up to 1.1". The lens supports 12 MP on 1.1" sensors and 9 MP on 1" sensors, with a minimum pixel pitch of 3.45 µm.

Focus and iris are manually adjustable and can be locked in position. The aperture range is F2.4 to F22 and the minimum object distance is 200 mm. The lens is suitable for inspection, measurement and positioning applications.

For other focal lengths within this series, view the complete OPTOWL 1" & 1.1" Machine Vision Lenses – 3.45 µm .

Full technical specifications: Click here to download
