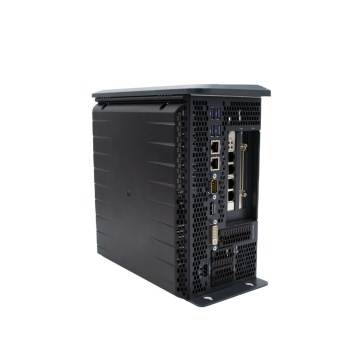

Datalogic MX-E45-4-P-2

Item No.: 057.0085

Datalogic MX-E45 Vision Processor, 4 Ports

The  Datalogic MX-E45 Industrial Vision Processors provides the highest performance in image processing with unmatched flexibility through GigE multi-camera connectivity support. The MX-E Series allows users to choose the level of system performance and complexity based on their application needs. Three different MX-E models are available, each featuring the latest processors and high speed PoE (Power over Ethernet) camera ports. This MX-E vision processor is equipped with PNP digital I/O and powers up to 4 Gigabit PoE cameras.

The Datalogic MX-E45 is a rugged and compact industrial vision processor that features a multi-core processor that is capable to connect to up to 4 cameras. The MX-E45’s long life embedded components provide a robust and reliable vision system for critical inspection applications.

Full technical specifications: Click here to download

*NOTE, the price of the MX-E vision processor can change regularly due to high demand and shortage of groundmaterials. Request a quote for the current price.

9.257,00
(Price excluding VAT)

Datalogic software

Features
Brand:
Datalogic
CPU:
Intel Celeron 2.4 GHz
Camera ports:
4
I/O:
16 in/16 out, PNP
System memory:
8GB DDR4
Vision software:
Impact VPM & CPM
Camere typ:
GigE
Operating system:
Windows 10 IoT Enterprise
Fan:
Yes

Technical Information

- CPU: Intel Celeron 2.4 GHz - dual core

- System memory: 8 GB DDR4 RAM

- Storage: 128 GB Sata SSD (MLC)

- GPU: Intel® HD Graphics 510

- Camera imager limit: 5Mpix or lower

- Network interface: 2x LAN ports - 10/100/1000 Mbps Base-T

- Serial communications: 1x RS-232 serial port

- Keyboard/mouse: 4x USB 3.0 ports

- Comm connectivity: Supports EtherNet/IP, Profinet, Modbus TCP and OPC

- I/O: 16 in - 16 out, PNP card, 200µs response time

- Operating system: Windows 10 IoT Enterprice

- Supply voltage: 24 VDC +/- 25%

- Nominal current draw: 5.5 A @ 24VDC

- Dimensions: 270 x 130 x 255 (mm)

- Weight: 2.05 Kg

- Housing: Galvanized plate - plastic

- Operating temperature: 0 tot 50 °C

- Operating humidity: 5 to 95% (non-condensing)

- Mechanical protection: IP20

- Fanless: No

- Certification: CE/FCC, c-UL-us, KCC
